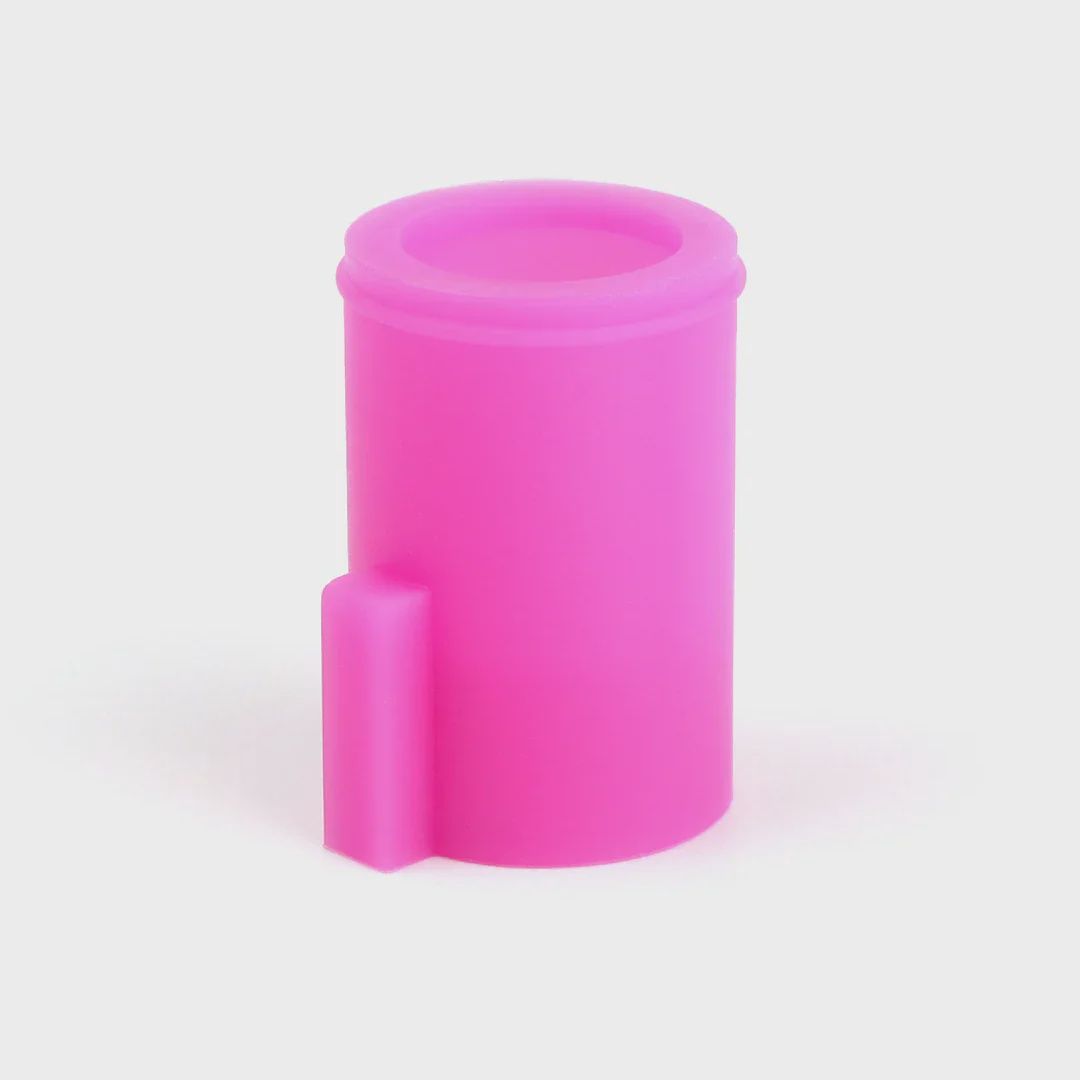

VSR/GBB Flamingo Bucking 60 Degree

The new Flamingo VSR/GBB Gen3 (2023) bucking from SniperMechanic. Improved contact patch, placement and materials.

This bucking will fit any rifles/pistols that use the VSR/GBB style bucking.

This bucking was a long time project in the making, one of the earliest but most challenging. However it's here and it's unique design and material offers great shot to shot consistency and a very flat flight path.

What makes the Flamingo bucking unique, more so than it's design is the material itself.

This is designed for GBB/VSR cut barrels, UNBRIDGED ONLY

GEN 2 - Improvements

The Gen 2 buckings are now made by a new factory, using a new mould process and material. The design has also been tested and tweaked to suit unbridged barrels for the most consistent contact width and length. These will no longer be suitable for bridged barrels.

The Gen2 Flamingo comes in 50A and 60A Shore, 50A is suitable for pistols and sub 400 builds, the 60A is for anything else.

Gen3 (2023) - Additional Improvements

Optimised patch radius

Improved feed lip angle

Improved rear sealing

Patch size increased to suit full open window barrels

Compatibility:

Maple Leaf Crazy Jets GBB/VSR - Suitable

Maple Leaf 6.02 Series GBB/VSR - Suitable

TNT Barrels Unbridged - Suitable

LayLax Unbridged- Suitable

Action Army Unbridged - Suitable

PDI (Genuine ones) Unbridged - Suitable, but very tight and need he use of an Omega nub due to tiny window

PDI Clone style barrels - Untested

EdGi Unbridged- Varies, some hop windows were suitable during testing, others were not as the window was shallow/to short.

Lambda Unbridged - Suitable

Other Unbridged Stock Barrels - most stock barrels won't fit due to the narrow width of windows, especially on WE/TM

Install tips:

For best results use on a barrel with a large window

Use a suitable concave nub in rifles, such as T-nub, Omega Nub, Bridge nub, H nub, gunsmithy TDC

For pistols, the standard V shape arm gives great accuracy, but for the best range use a Hadron H

Plate or Maple Leaf Key

PTFE rear of bucking

Lube outside of bucking when installing into tight chamber as the material is very grippy.
